110mm Dia Drinking Water Filling Machine 12000BPH SUS316L 200ml

Name: 110mm Dia Drinking Water Filling Machine 12000BPH SUS316L 200ml
Brand: Aquatrin
Price: 15000 USD

Buy cheap 110mm Dia Drinking Water Filling Machine 12000BPH SUS316L 200ml product

Brand Name : Aquatrin

Model Number : CGF

Certification : ISO CE

Place of Origin : China

MOQ : 1unit

Price : USD15000-60000 1Set

Payment Terms : T/T

Supply Ability : 10units per month

Delivery Time : 45days

Packaging Details : wooden package

Keyword : Drinking Water Production Plant

Dimension(L*W*H) : 2900*2100*2400mm

Machinery Capacity : 12000BPH

Suitable Bottle Size : 200ml-2000ml

After-sales Service Provided : Online support, Video technical support, Free spare parts,

Bottle Diameter : 50~110mm

Contact Now

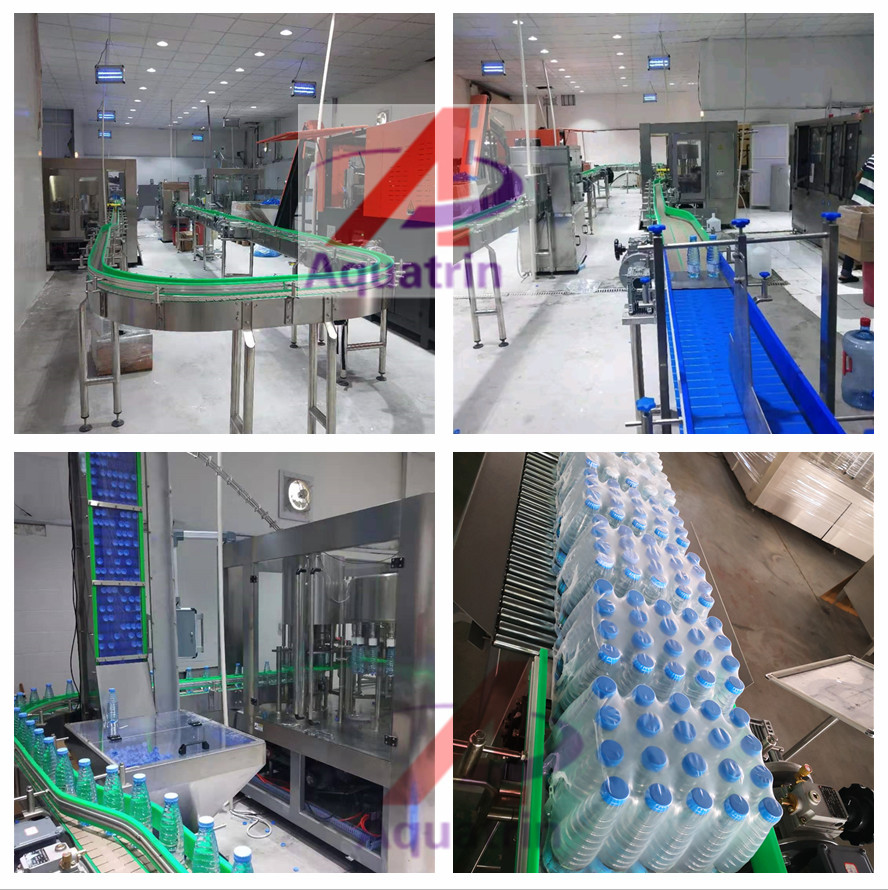

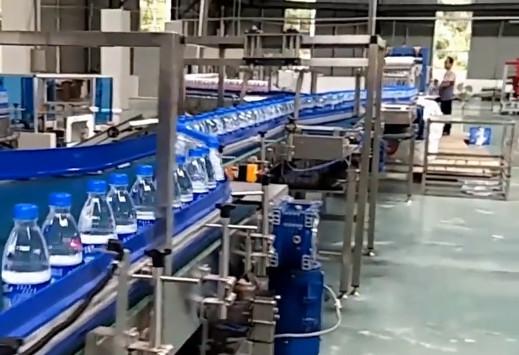

water filling line

Drinking Water Washing Filling Capping 3 in 1This Drink water bottle filling machine / equipment / production line used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery.Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
WATER LINES FLOW CHART

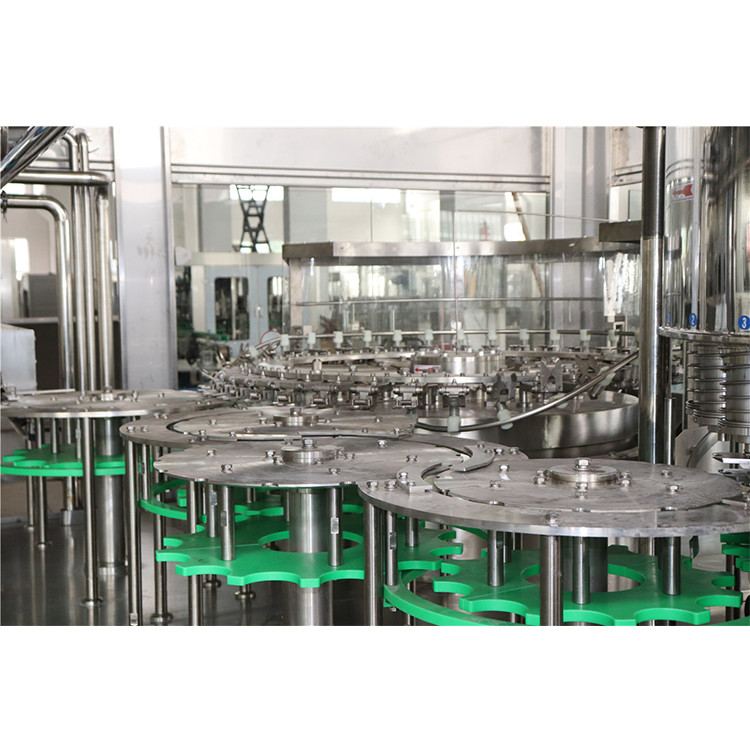

Washing parts of water filling machine
Using unique design,avoid the traditional bottle on rubber clip to block the bottle threaded parts may be caused by the pollution.
Washing pump is made of stainless steel.
By high spray nozzle, blunt bottle of water jet angles, flush to the bottle of any part of the inner wall, rinse with water thoroughly and save flush bottle.
Bottle clamp and flip agencies sliding sleeve adopts Germany igus corrosion resistant bearing without maintenance.

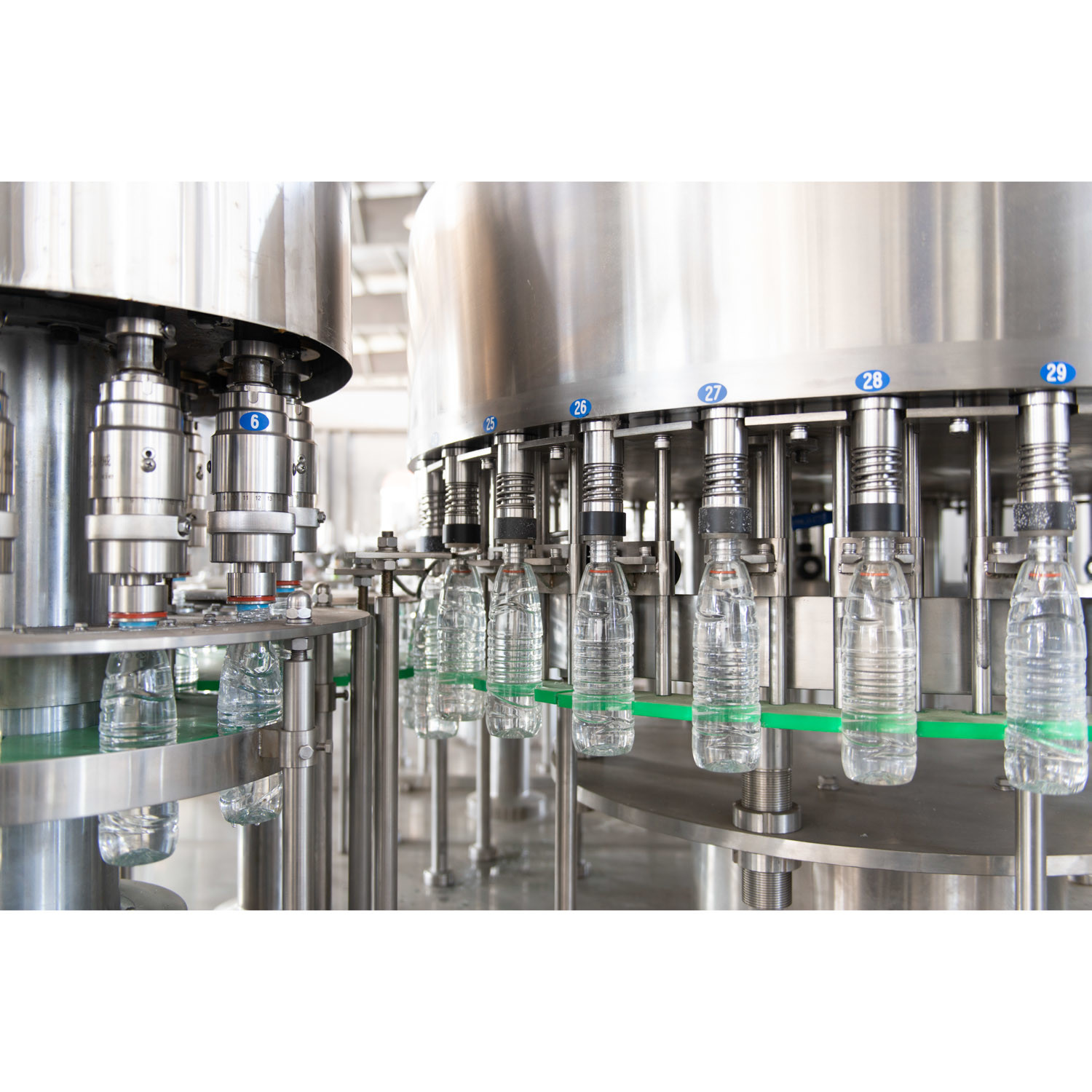

Filling parts of water filling machine
Filling method for gravity filling.
Filling valve manufactured SUS 304/316L.
High precision, high speed liquid filling.
Filling move by the rack drive system through gear transmission.
Hydraulic cylinder controlled by a float liquid level.
Using the latest double guide pillar type bottle of lifting mechanism, avoid the bottle of elevating the old products must be through the mesa caused by leakage on the edge, at the same time, easy installation and maintenance.
Capping parts of water filling machine
Automatic check,no bottle no capping.
Capping heads in stainless steel 304/316L.
Capping heads stop working when lack of bottle.
Fall guy guide sets out to prevent the cover through and cover on the body, at the same time equipped with a set of photoelectric switch, automatic stop when lighted cover rail without cover machine, can effectively avoid the occurrence of open bottle.
High efficiency centrifugal principle.

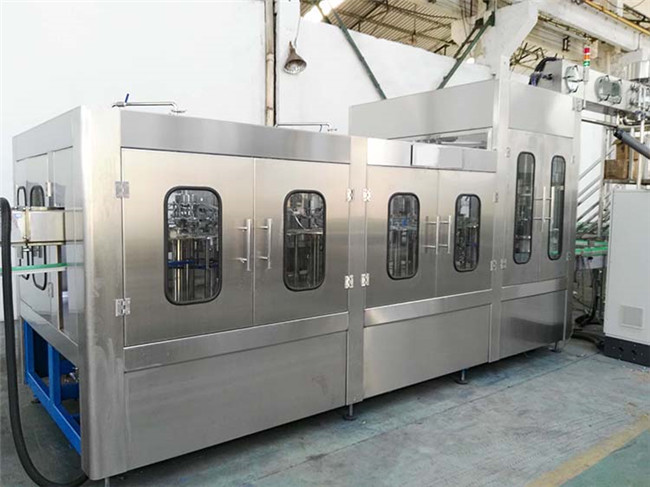

110mm Dia Drinking Water Filling Machine 12000BPH SUS316L 200ml

Main Features

The machine adopts advanced SIEMENS programmable logic controller (PLC) to control the automatic running of the machine. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable. The photoelectric inspection of the running condition of various parts makes a higher automation and convenient operation. It is the ideal first-choice equipment of beverage manufacturers.

Product Paramenters

Model	Capacity	Rinsing heads	Filling heads	Sealing heads	Overall dimensions
CGF14-12-5	6000BPH	14	12	5	240019002800mm
CGF16-16-5	8000BPH	16	16	5	250019002200mm
CGF18-18-6	10000BPH	18	18	6	280020502200mm
CGF24-24-8	13000BPH	24	24	8	310024502800mm
CGF32-32-10	16000BPH	32	32	10	370027502900mm
CGF40-40-10	19000BPH	40	40	10	430033002900mm
CGF50-50-12	21000BPH	50	50	12	520037002900mm
CGF60-60-15	25000BPH	60	60	15	630044002900mm
