Water Lines
Success in water beverage production requires focus on maximum output and efficiency, with commitment to hygiene, food safety and cost optimisation. Whether you’re producing still or sparkling water, our unmatched expertise helps you achieve more with extensive technical knowledge and packaging capabilities.
With over decade years of experience in designing and implementing customised complete PET line solutions for water; our technician team can help you reach your production targets.

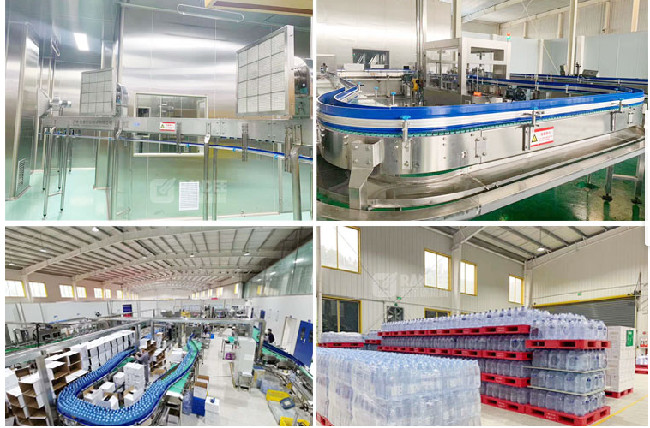

Bottle water line is combined by several unit machines, each unit machine cooperates with other machines together to achieve the best production efficiency, save cost and time. The complete water bottle production line capacity can be 6000BPH-48000BPH (based on 500ml), the speed and the water factory specification is customized according to your technical requirements.

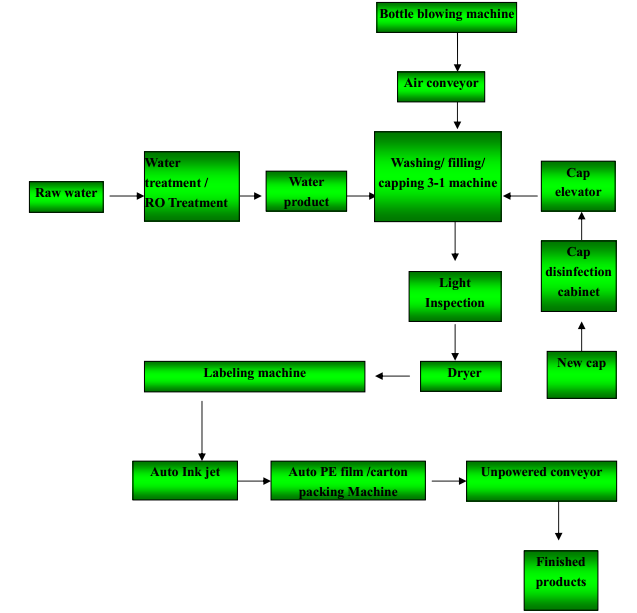

Automatic bottle water production line is composed of:
1. bottle blow molding machine
2. air conveyor, 3 in 1 filling machine, (or combiblock machine)
3. bottle conveyor and light checking
4. bottle dryer and date coding machine
5. labeling machine (sleeve labeling machine, hot melt glue labeling machine, self-adhesive labeling machine, cold glue labeling machine)
6. packing machine (shrink film wrapping packing machine, wraparound case packing machine, pick and place type case packer)
7. carton/ pack conveyor: roller conveyor or chain conveyor
8. palletizer (low level gantry palletizer, high level gantry palletizer, single column palletizer)
9. stretch film wrapping machine.
This CGF Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
| | |
| | |
| | |
| | |
| | |
| | PET bottle,plastic bottle |
| | |
| | |
| | |
| | |
| | |

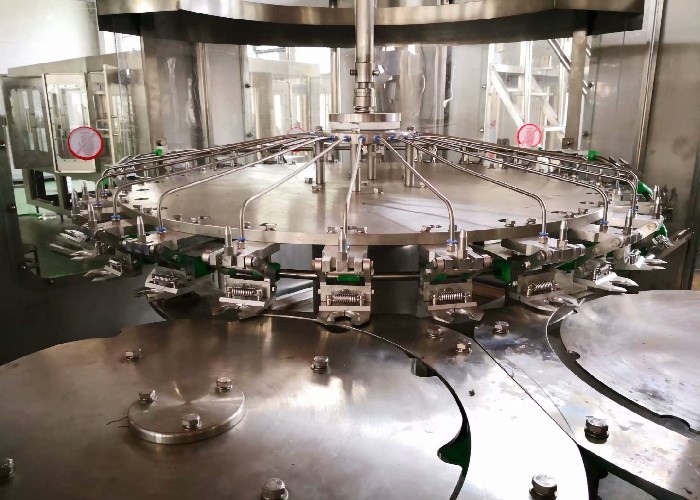

Washing heads
<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump

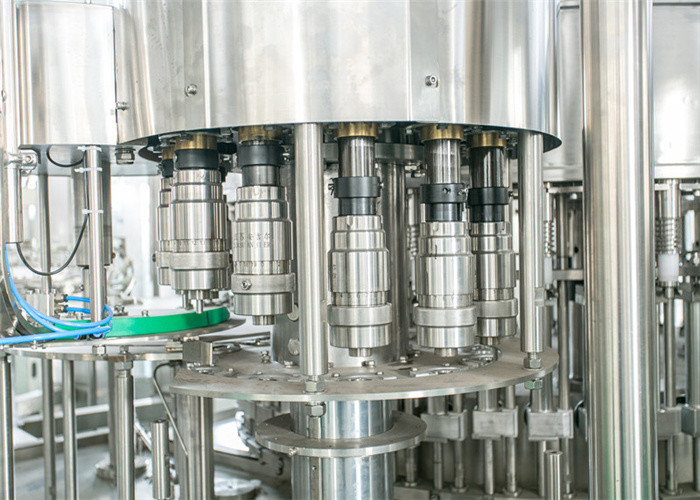

Filling heads
<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
Capping heads
<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
